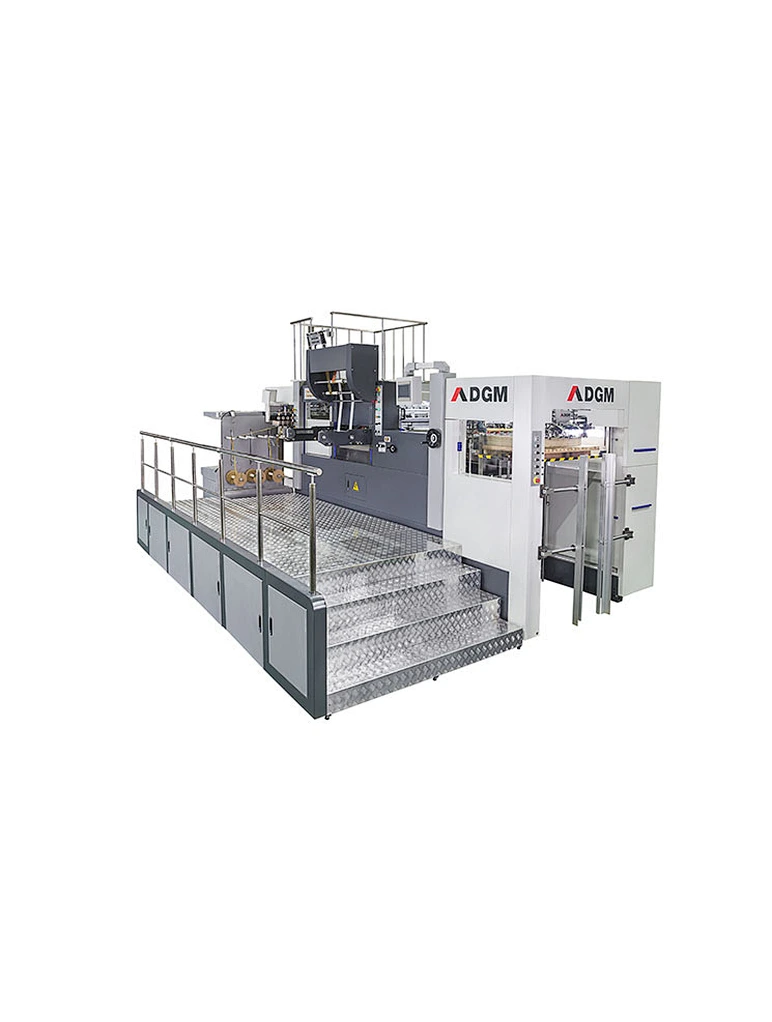

Composition
Feeder

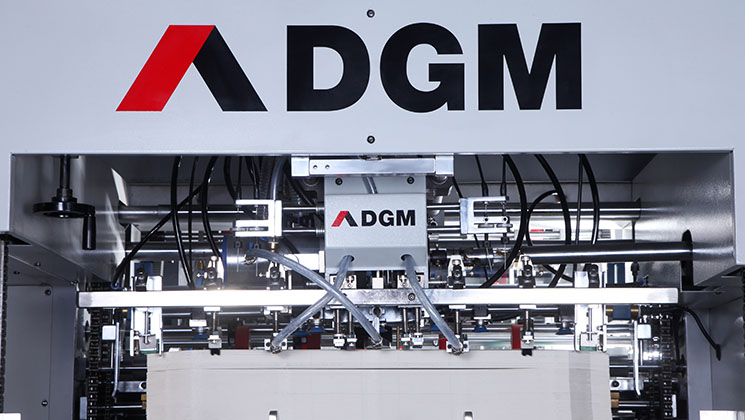

Automatic feeder with non-stop system, with pallet and cart direct load.
4 lift-up and 4 delivery suckers, designed to handle a wide range of materials from pa-per to corrugated board, guarantee the accuracy, reliability and smoothness of paper feeding.
Double sheet detector.

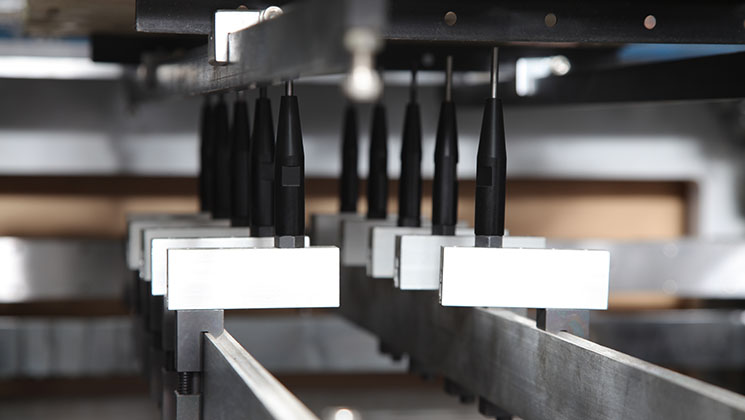

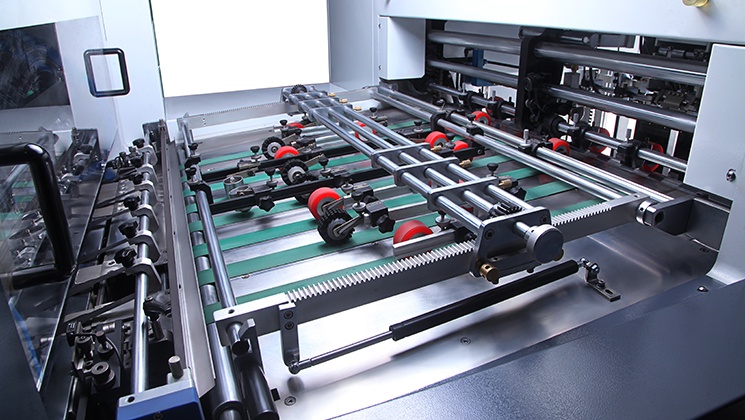

Register table
Quick changeovers, easy to operate.
2 register side guides working with pulling and pushing system.
4 register front lays, independently adjustable.
Press Section

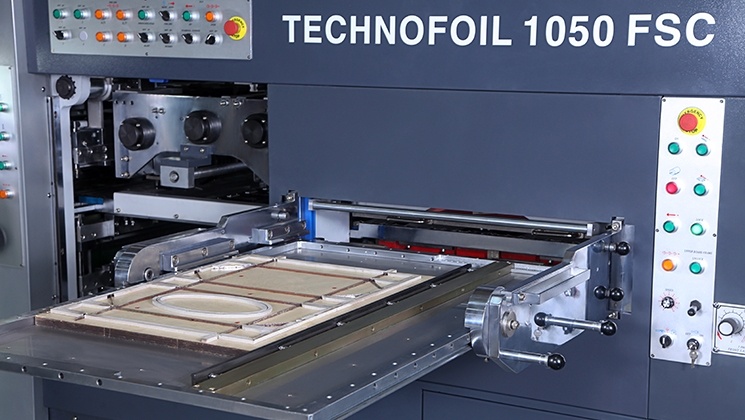

Closed chase with central positioning system device for fast positioning of the die.
Cutting plate 5 mm thickness.
Pressure control system, can be easily adjusted through touch screen. It has a securi-ty system to avoid any damage in the press.
Manual and automatic lubrication system.

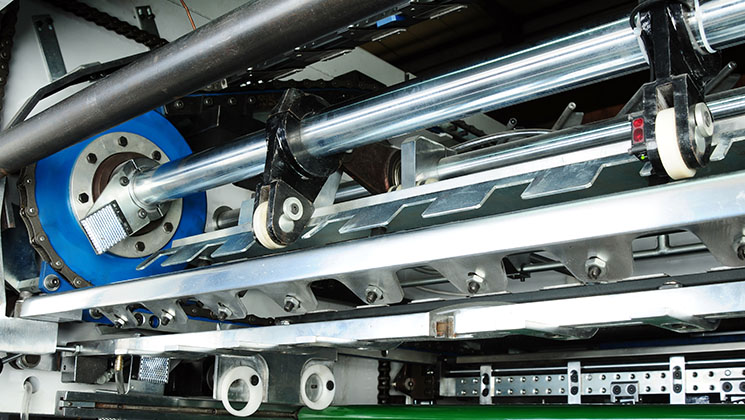

7 light weight gripper bars.
Turn-over bracket for cutting chase and honeycomb chase.
Pneumatic lock and release system for cutting chase and honeycomb plate.
Foil stamping system
Heating system in 12 temperature zones with individual temperature control.
Foil break detector.
Films fasten device.
Foil unwind device.

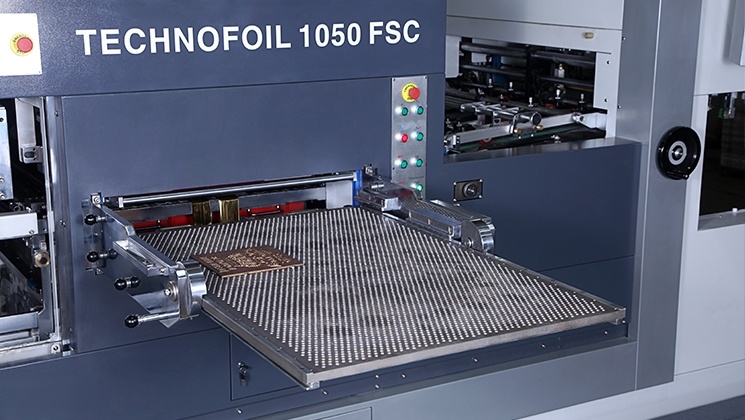

Honeycomb chase.
Stripping section
Optimized cam movement curve that guarantees stripping stability and accuracy.
Quick-locking and central positioning system to assure the waste is cleared with accuracy.

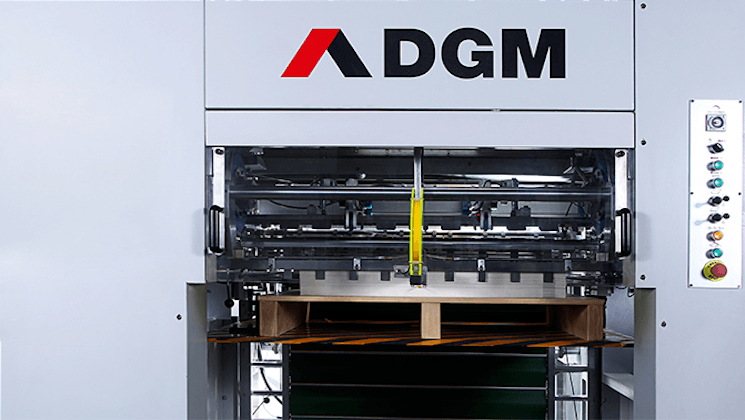

Delivery section
Non-stop device with automatic conveyor at delivery.

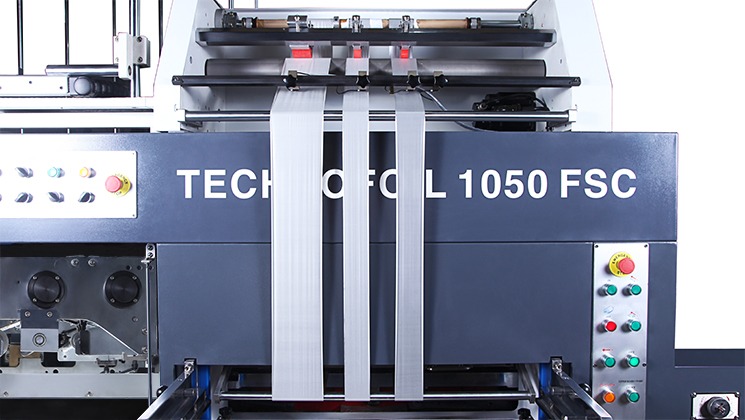

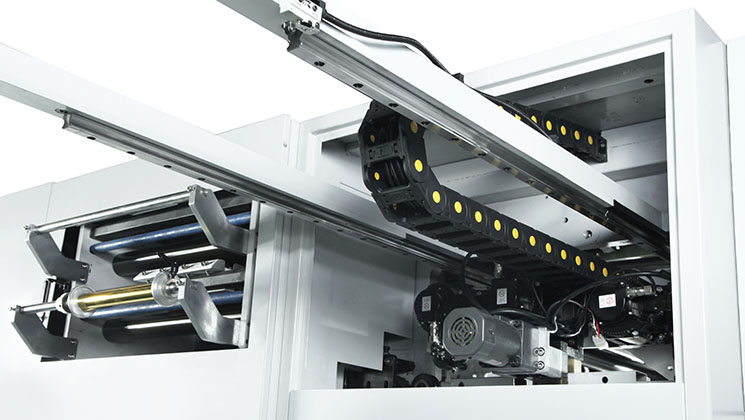

Motorized removable longitudinal foil system
3 longitudinal shaft foil rollers.
Easy to remove and set up.
Can be used as a foil stamper machine with 3 longitudinal plus 2 transversal shafts or a regular die-cutter with stripping.
Air blast foil separation system.
Foil tensioning system.

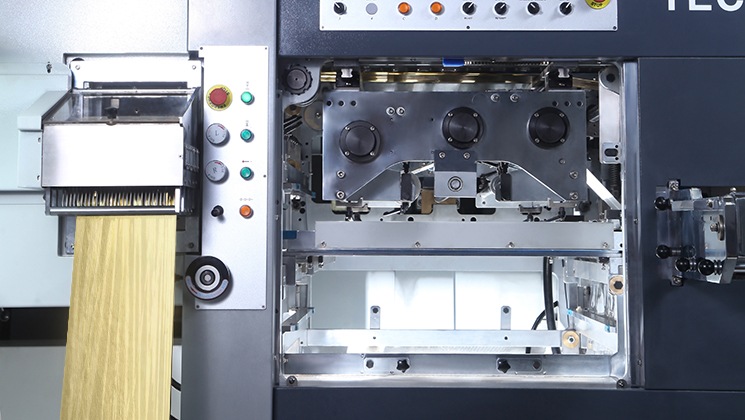

Transverse shaft
2 foil rolls in a high precision transversal foil feeding system.
Processed material
Paper
Carton Board
Corrugated Board
Specifications
Processed Materials
Paper from 80 g/m²
Carton board max. 2000 g/m²
Corrugated board max. 4 mm
Capability
Sheet size min. 350 x 400 mm
Sheet size max. 740 x 1050 mm
Speed max. 7500 s/h
Stamping speed max. 6000 s/h
Cutting force 300 Ton
Converting
Stamping & embossing size max. 720 x 1020 mm (Longitudinal)
Stamping & embossing size max. 580 x 1020 mm (Transversal)
Die cutting size max. 730 x 1040 mm
Heating System
Heating zones 12 units
Temperature max 200 ºC
Foil Equipment
Foil length 120 to 1200 m
Web width 50 to 1020 mm (Longitudinal)
Web width 50 to 630 mm (Transversal)
Web advance shafts 3 (Longitudinal)
Web advance shafts 2 (Transversal)
Pile Height
Feeder max. 1650 mm
Feeder with non-stop 1270 mm
Delivery max. 1300 mm
Dimensions & Weight
Length x Width x Height 7.08 x 5.52 x 3.26 m
Weight 21 Ton
Installation
Power supply 60 kW
Compressed air 6 bar
Air compressor capacity 30 m³/h
Air tank capacity 155 L
Air compressor power 3.5 kW

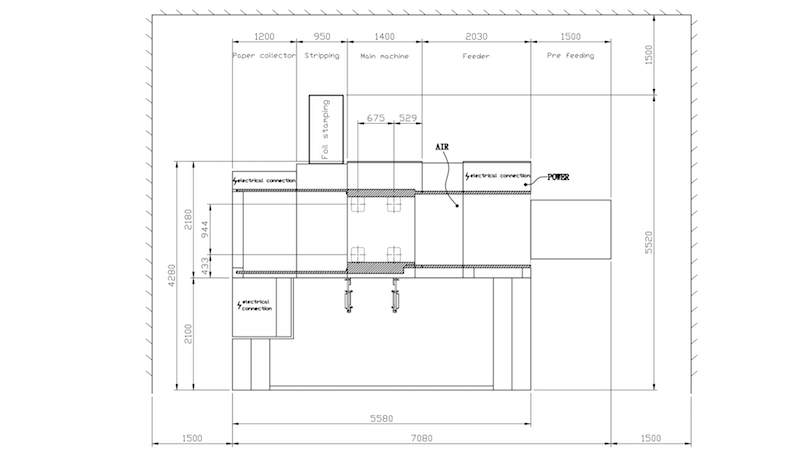

Scheme
