Composition

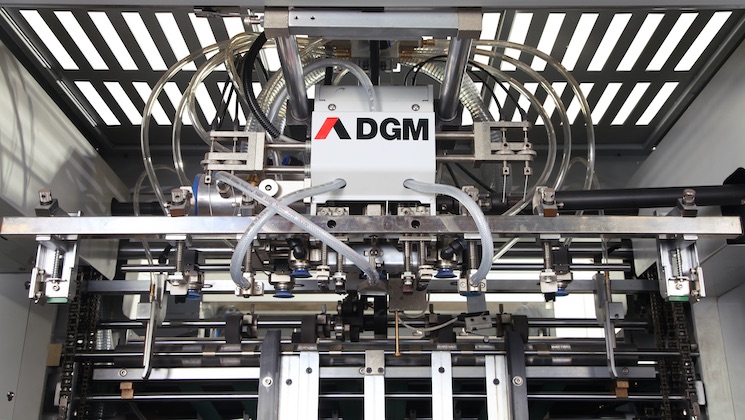

Feeder

• Automatic feeder with non-stop system, with pallet and cart direct load.

• 4 lift-up and 4 delivery suckers, designed to handle a wide range of materials from pa-per to corrugated board, guarantee the accuracy, reliability and smoothness of paper feeding.

• Double sheet detector.

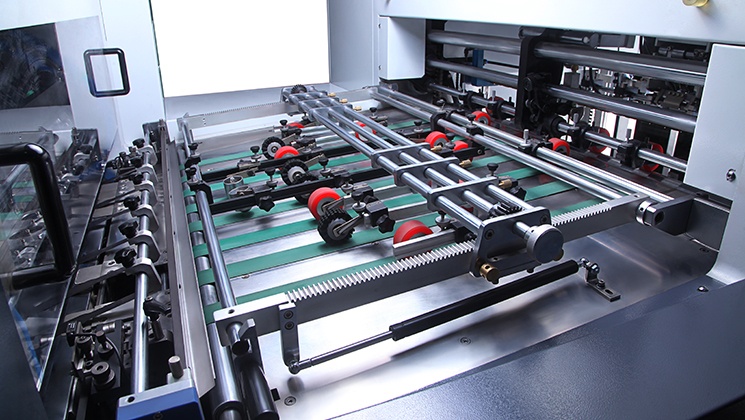

Register table

• Quick changeovers, easy to operate.

• 2 register side guides working with pulling and pushing system.

• 4 register front lays, independently adjustable.

Press section

• Closed chase with central positioning system device for fast positioning of the die.

• Cutting plate 5 mm thickness.

• Pressure control system, can be easily adjusted through touch screen. It has a securi-ty system to avoid any damage in the press.

• Manual and automatic lubrication system.

• 7 light weight gripper bars.

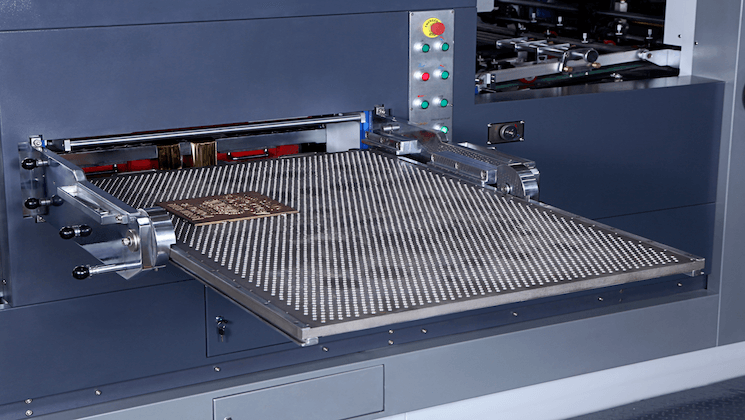

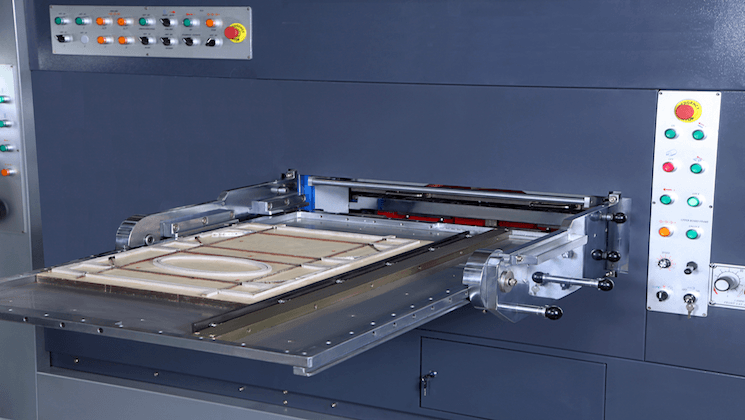

• Turn-over bracket for cutting chase and honeycomb chase.

• Pneumatic lock and release system for cutting chase and honeycomb plate.

Foil stamping system

• Heating system in 12 temperature zones with individual temperature control.

• Foil break detector.

• Films fasten device.

• Foil unwind device.

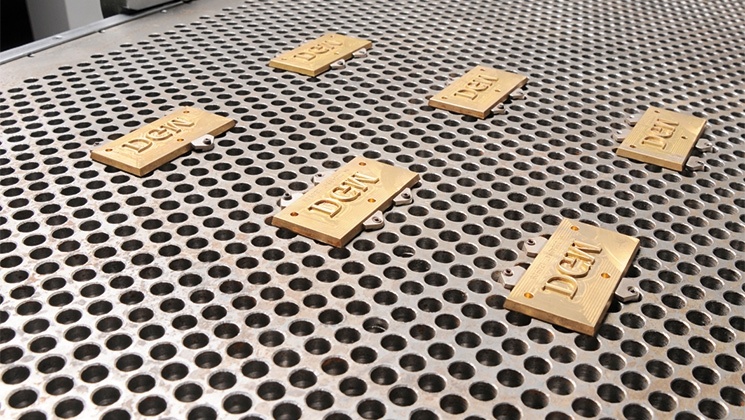

• Honeycomb chase.

Hologram system

• High precision servo motor control system.

• Holographic foil sensor tracker.

• Foil tensioning system.

• Optical fiber precise positioning system, together with hologram foil unwind and foil fasten devices, make sure accurate registration and stamping.

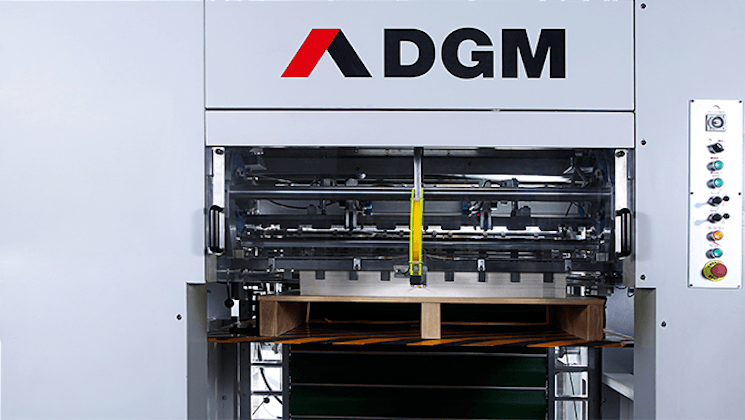

Delivery section

• Non-stop device with automatic conveyor at delivery.

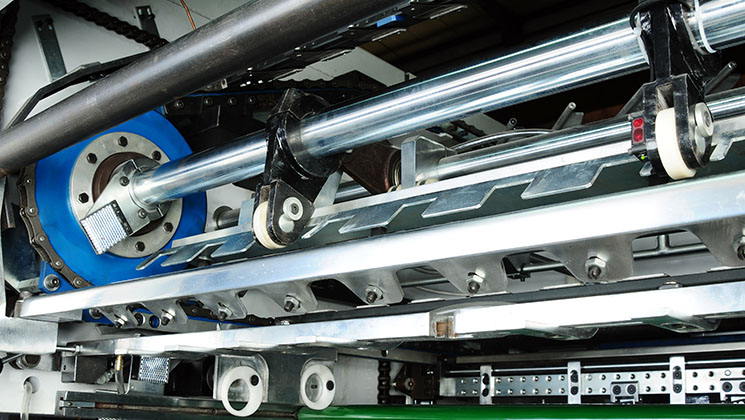

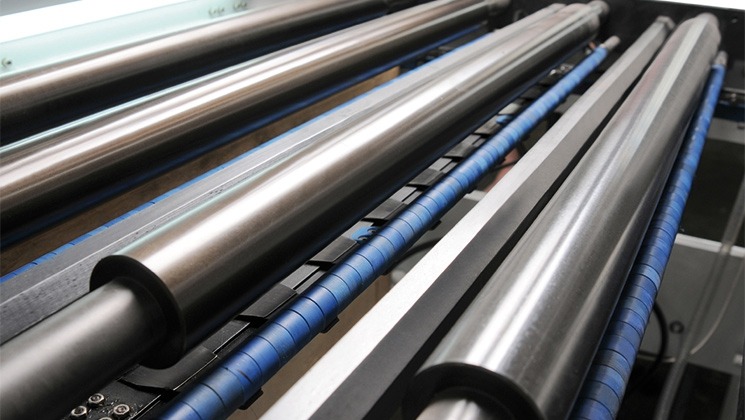

Longitudinal Shaft

• 4 foil rolls in a high precision longitudinal foil feeding system.

• Air blast foil separation system.

• Foil tensioning system.

Processed material

Paper

Carton Board

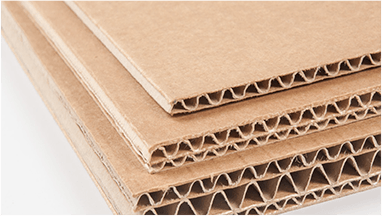

Corrugated Board

Specifications

• Processed Materials

• Paper from 80 g/m²

• Carton board max. 2000 g/m²

• Corrugated board max. 4 mm

• Capability

• Sheet size min. 350 x 400 mm

• Sheet size max. 740 x 1050 mm

• Speed max. 7500 s/h

• Stamping speed max. 6000 s/h

• Cutting force 300 Ton

• Converting

• Stamping & embossing size max. 720 x 1020 mm

• Die cutting size max. 730 x 1040 mm

• Heating System

• Heating zones 12 units

• Temperature max 200 ºC

• Foil Equipment

• Foil length 120 to 1200 m

• Web width 50 to 1020 mm

• Web advance shafts 4

• Pile Height

• Feeder max. 1650 mm

• Feeder with non-stop 1270 mm

• Delivery max. 1300 mm

• Dimensions & Weight

• Length x Width x Height 7.08 x 4.28 x 2.45 m

• Weight 18.5 Ton

• Installation

• Power supply 60 kW

• Compressed air 6 bar

• Air compressor capacity 30 m³/h

• Air tank capacity 155 L

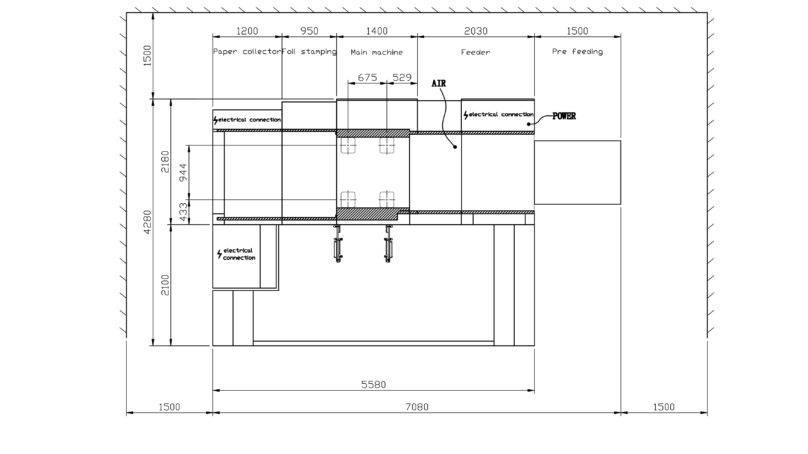

Scheme
