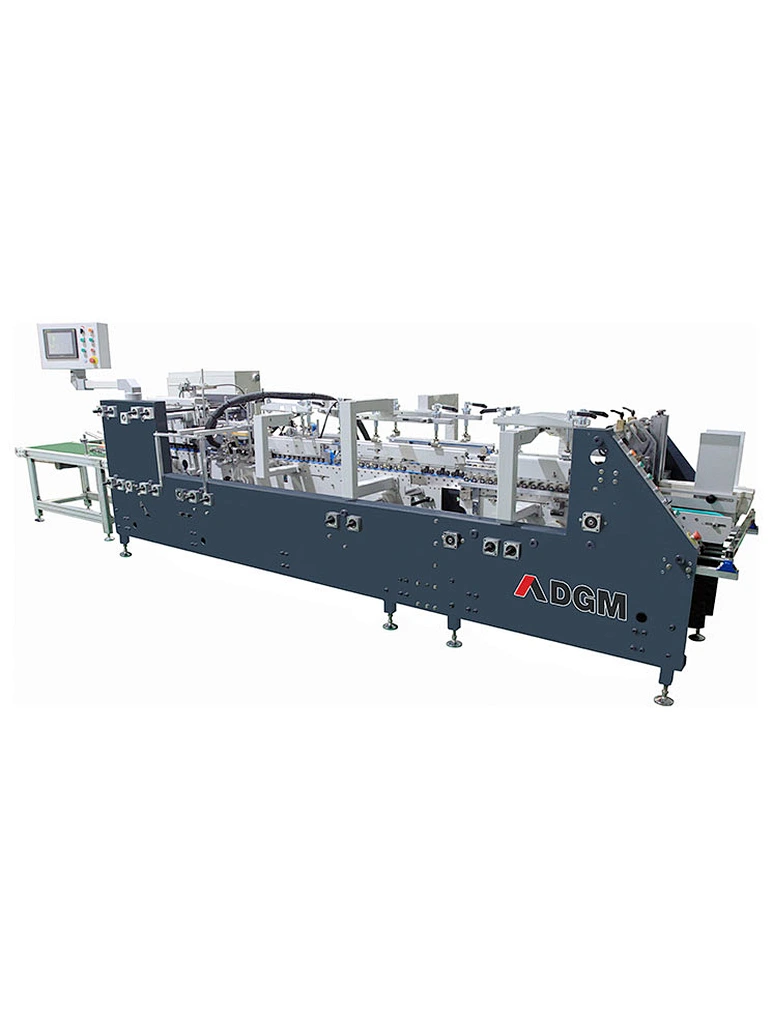

Composition

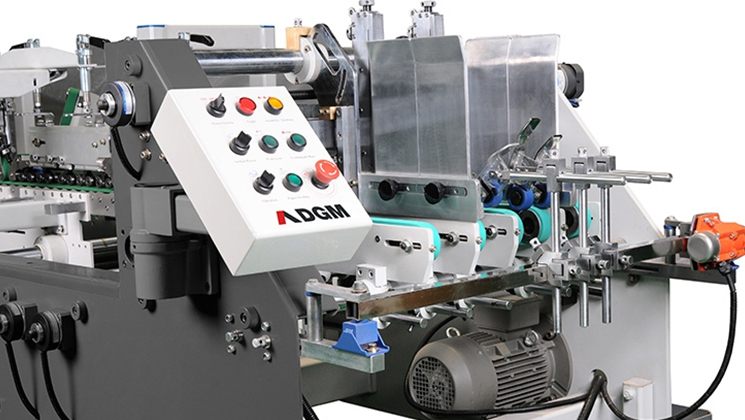

Feeder

• 6 feed belts 30mm width.

• Each feeder carrier can be independently adjustable laterally.

• Side feed gates fully adjustable to the width of the blank.

• Two adjustable front feed knives.

• Adjustable electronic pile vibrator.

• Blank feeding is continuously, smooth and perfect aligned.

• Driven independently by servo motor, can adjust blank distance with ease.

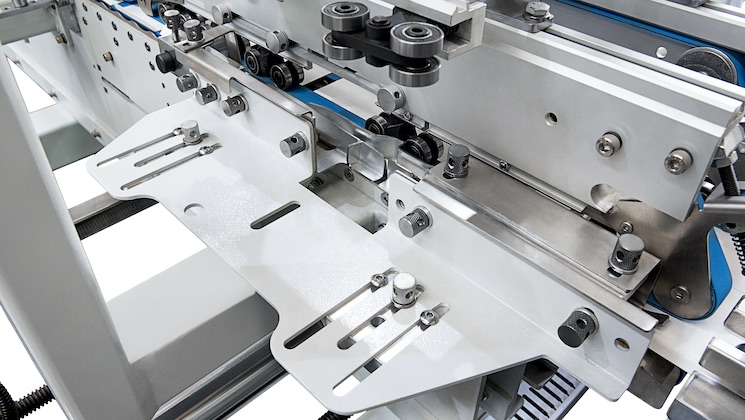

Side register section

• 2 sets of upper and lower carriers.

• Lower belts are tilt adjustable.

• Upper carrier with sets of bearings, each bearing can adjust its pressure independently.

• Guide the box to a parallel handrail that allows a perfect blank alignment.

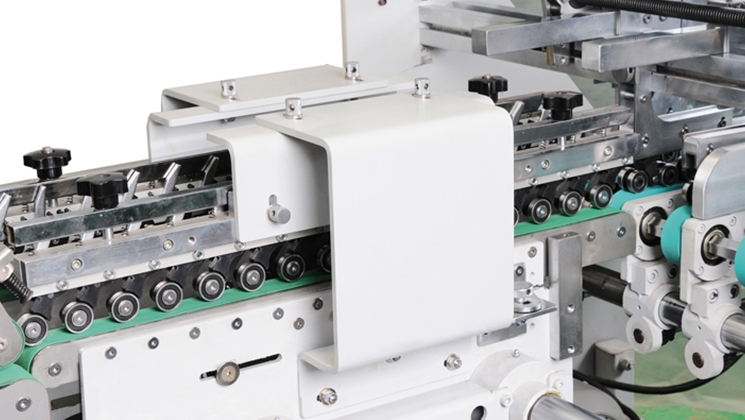

Pre-folding section

• Left hand glue flap pre-folder up to 180°.

• Pre-folding device right hand with belt.

• Third crease line pre-folder up to 135°.

• 1st and 3rd crease openers.

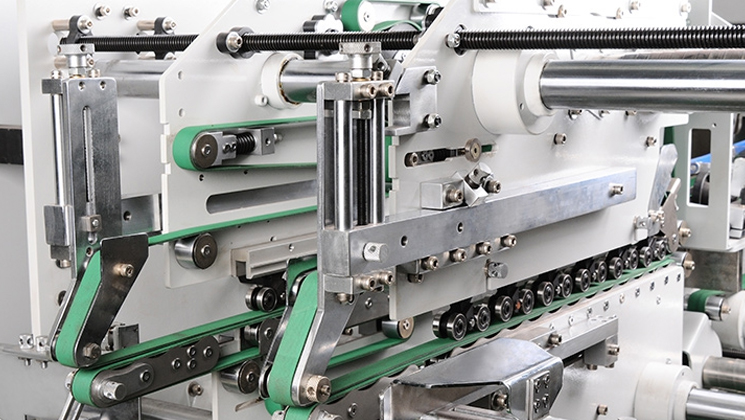

Trombone

• 2 sets of upper and lower carrier with transfer belts.

• Upper and lower drive mechanism for lengthwise adjustment.

• Continuous and automatic box collection mechanism that ensures a neat transfer to the press section, guaranteeing a well aligned flow.

• Box counting module with kicker equipped on the machine, mark and separate between batches.

Processed material

Carton board

Specifications

• • Processed materials

  • Carton board max. 800 g/m²

  • Capability

  • Speed max. 250 m/min

  • Inching speed 20 m/min

  • Thickness of folded box max. 20 mm

  • Blank width 600 mm

• Dimensions & Weight

• Length  10.23 m

• Width  1.44 m

• Height  1.3 m

• Weight  5 Ton

• Installation

• Electrical connected load  14 kW

• Compressed air 6 bar

• Air compressor capacity 10 m³/h

• Air tank capacity 60 L

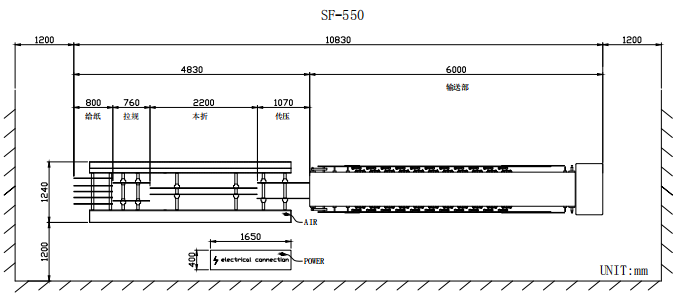

Scheme
