Composition
automatic beer production line，beer line production

Feeder

Registre Section

Demoulding Section

Pivotement Section

Folding&closing Section

Crashing roller module

Trombone

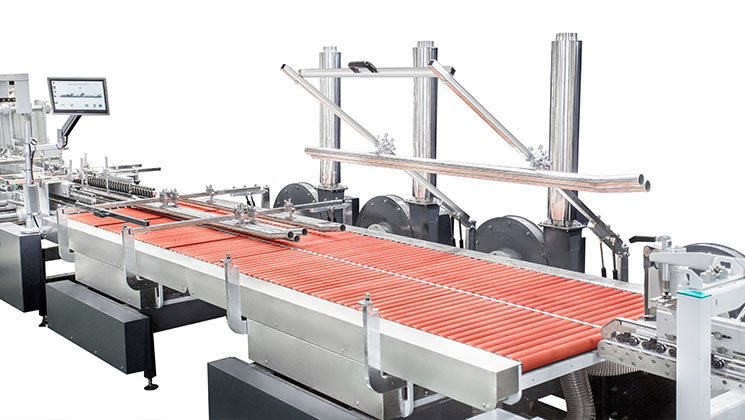

Conveyor

Squaring device at conveyor

Processed material
Specifications

• Processed material

• Carton 700 g/m²

• Corrugated flute type N, E & F

• Capability

• Speed max. 500 m/min

• Inching speed 30 m/min

• Folded box thickness max. 15 mm

• Blank width max. 1100 mm

• Dimensions & Weight

• Length 24 m

• Width 1.9 m

• Height 1.9 m

• Weight 14 Ton

• Installation

• Power supply 85 kW

• Compressed air 6 bar

• Air compressor capacity 10 m³/h

• Capacity 60 L

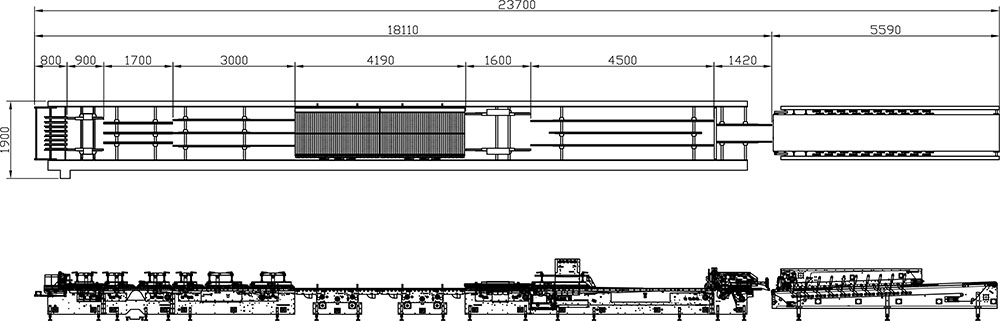

Scheme

Box type
