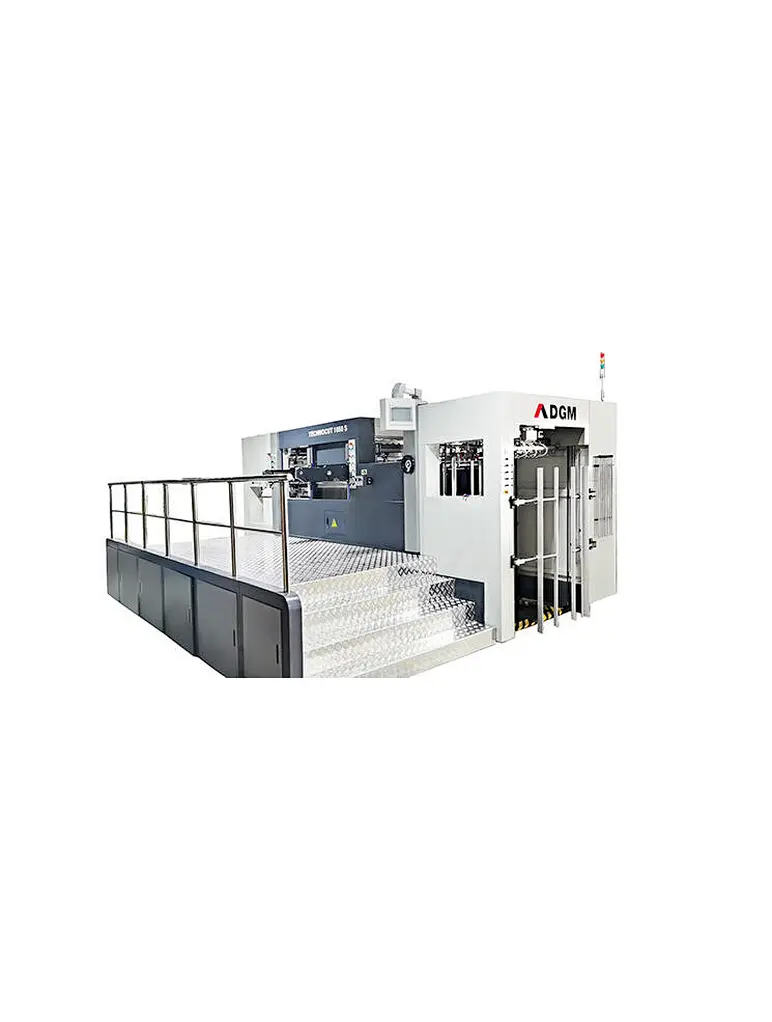

Composition

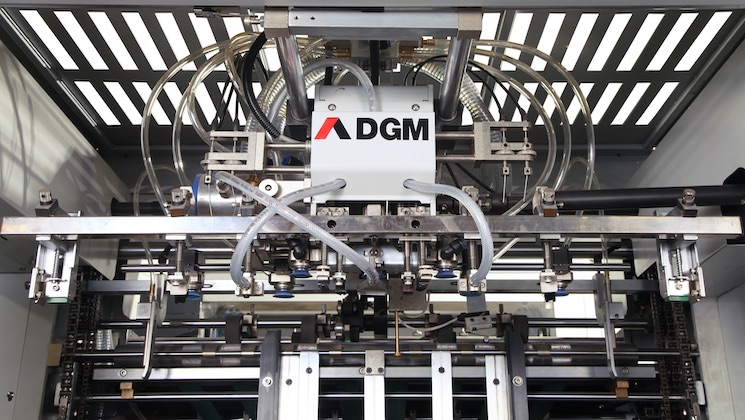

Feeder

• Automatic feeder with non-stop system.

• Pallet & cart direct load.

• 4 lift-up and 4 delivery suckers, designed to handle a wide range of materials from paper to corrugated board. They guarantee the accuracy, reliability and smoothness of paper feeding.

• Double sheet detector.

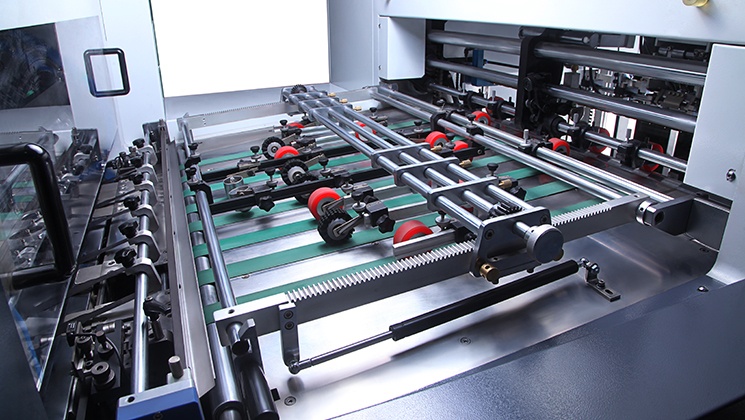

Register table

• 8 conveyor belts.

• Different kinds of pulleys, independently adjustable.

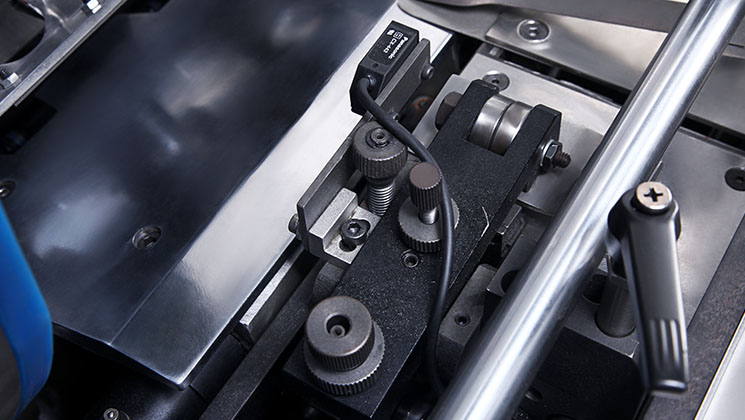

Registration device

• 2 register side lays working with pulling and pushing system.

• 4 register front lays, independently adjustable.

Die cutting section

• Closed chase with central positioning system device for fast positioning of the die.

• 5 mm thick die-cutting plate.

• Pressure control system, can be easily adjusted through touch screen. Equipped with overpressure protection system.

• Automatic and manual lubrication system.

• 7 sets of light weight gripper bars.

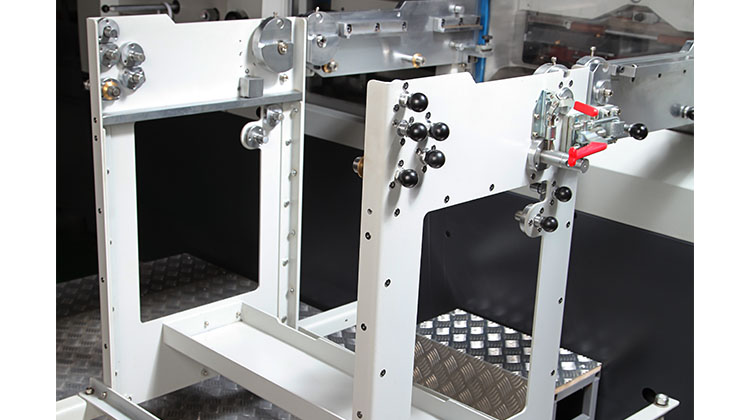

• Turn-over bracket for cutting chase and honeycomb chase.

• Pneumatic lock & release system for cutting chase and honeycomb plate.

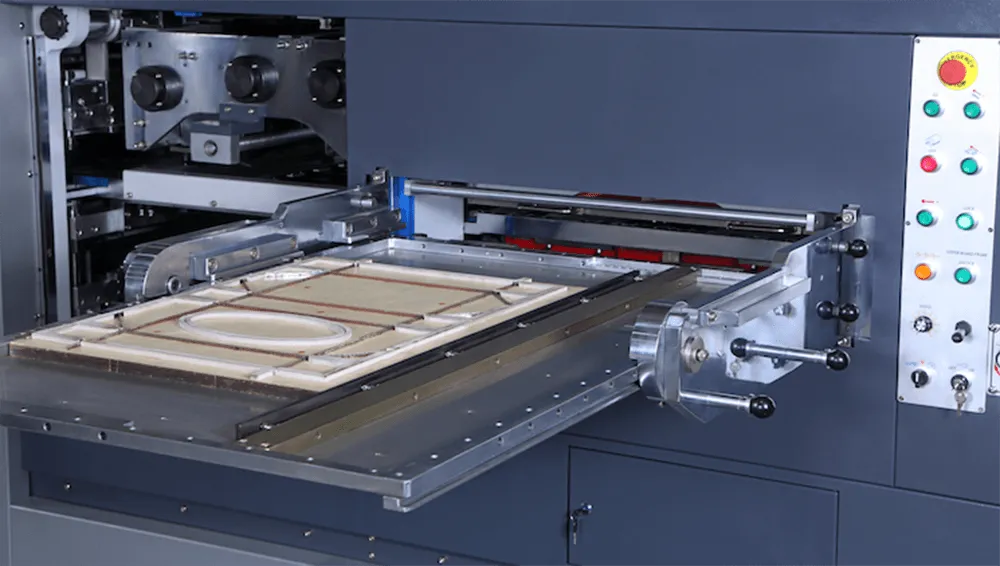

Die-cutting chase make-ready table

• Make-ready table for die-cutting chase and honeycomb chase. (Optional)

Processed material

Paper

Cardboard

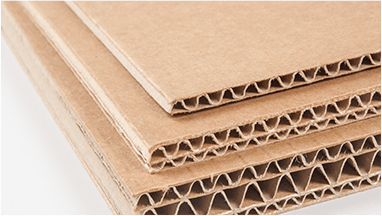

Corrugated

Specifications

• Processed material

• Paper min 80 g/m²

• Cardboard max 2000 g/m²

• Corrugated board max 4 mm

• Capability

• Sheet size min 350 x 400 mm

• Sheet size max 740 x 1050 mm

• Speed 7500 s/h

• Cutting force 300 Ton

• Converting

• Cutting size max 730 x 1040 mm

• Gripper margin min 9.5 mm

• Pile height

• Feeder 1650 mm

• Delivery 1300 mm

• Dimensions & Weight

• L x W x H 7.1 x 4.28 x 2.45 m

• Weight 17 Ton

• Installation

• Power 25 kW

• Compressed Air 6 bar

• Air flow 15 m³/h

• Capacity 100 L

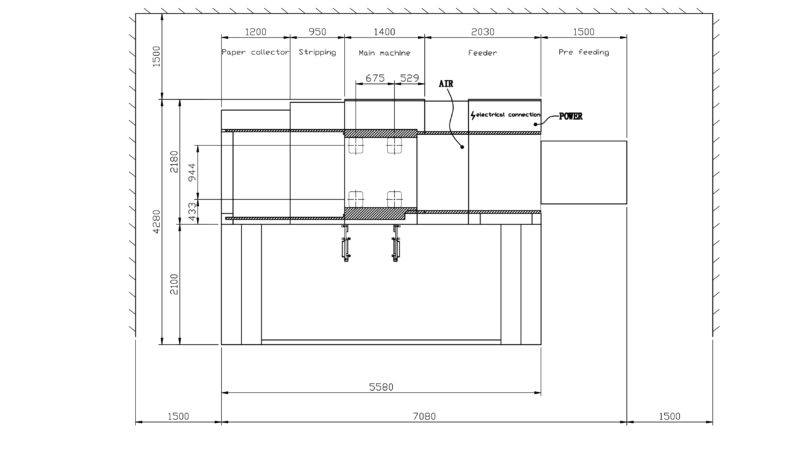

Scheme
