Composition

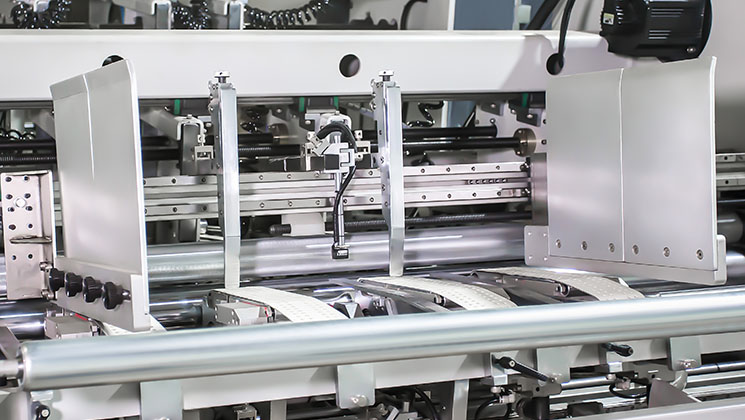

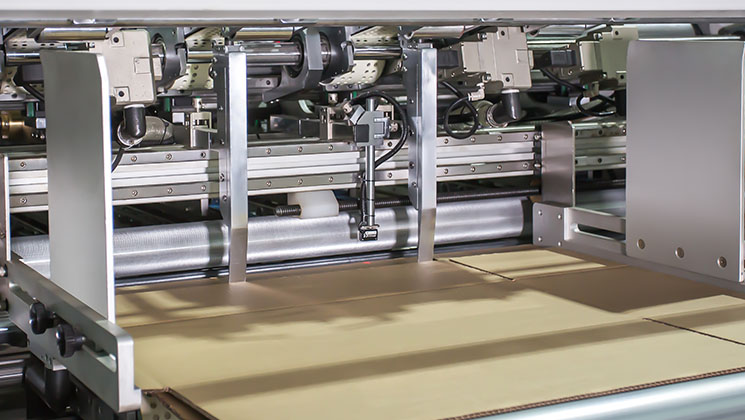

Double feeder section

• Upper and lower feeders, 4 belts 120 mm wide.

• 12mm thickness feeding carriers, can be moved laterally

• Lateral feed gates fully adjustable to the width of the blank.

• 2 adjustable front feed knives.

• Suction feeding function.

• Driven independently by servo motor.

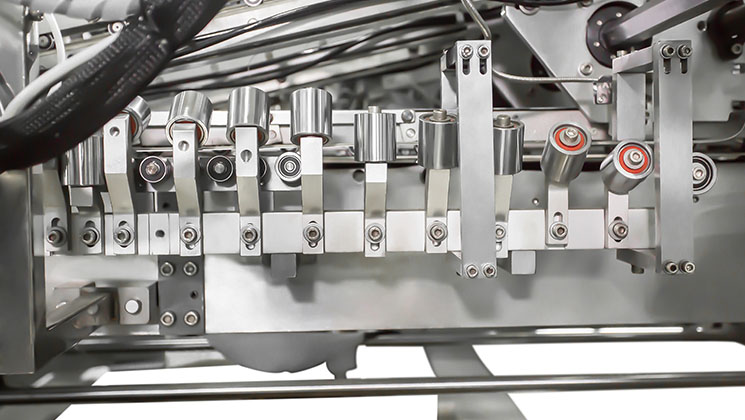

Side folding device

• Different angle designed pulleys, guiding box flap steadily to gluing unit.

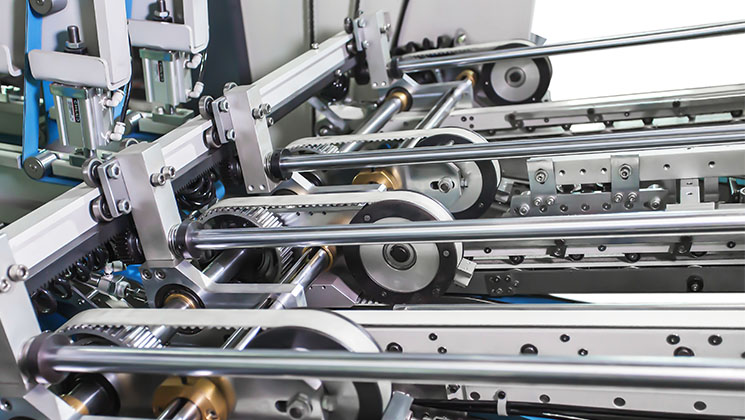

Front lay alignment section

• Five sets positioning front lay.

• Upper and lower timing belts are driven independently, with high precision and stability.

• Touch screen operation system.

• Hotmelt or cold glue can be adapted.

• Side folding system, can be placed at left or right side, upper or lower carrier.

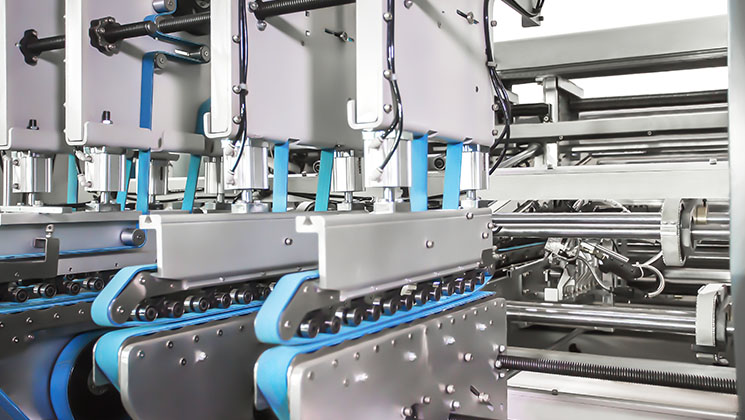

Transfer section

• 4 sets of upper and lower carriers.

• Sufficient transfer time for reliable bonding.

• Can in-line with other folder gluer to achieve multi-function in single pass.

• Independent servo motor driven system.

Processed material

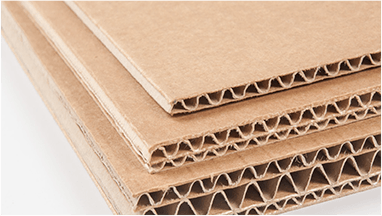

Corrugated board

Specifications

• Processed material

• Cardboard 300 g to 800 g

• Corrugated type A ,B, C, E, K, BC, EB, AB

• Capability

• Speed max. 250 m/min

• Inching speed 10 m/min

• Cardboard thickness<10 mm

• Blank width 650 to 2000 mm

• 2-piece box open blank width max. 4000 mm

• Hotmelt & cold glue

• Dimensions & Weight

• Length 9.91 m

• Width 4 m

• Height 2 m

• Weight 7 Ton

• Installation

• Power supply 50 kW

• Compressed air 10 bar

• Air compressor capacity 30 m³/h

• Capacity 150 L

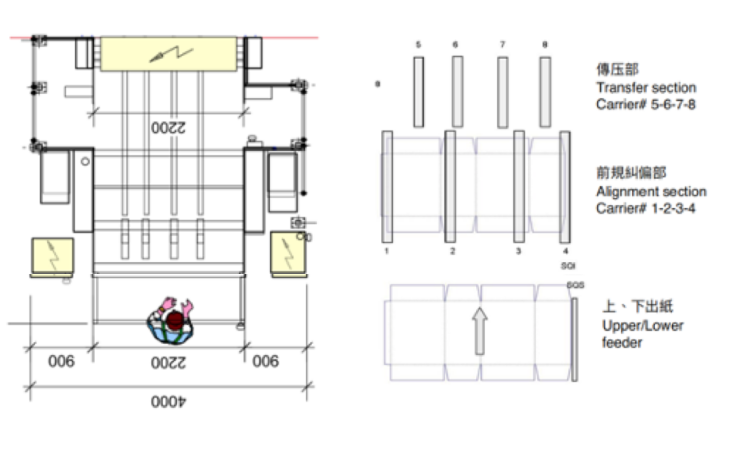

Scheme
