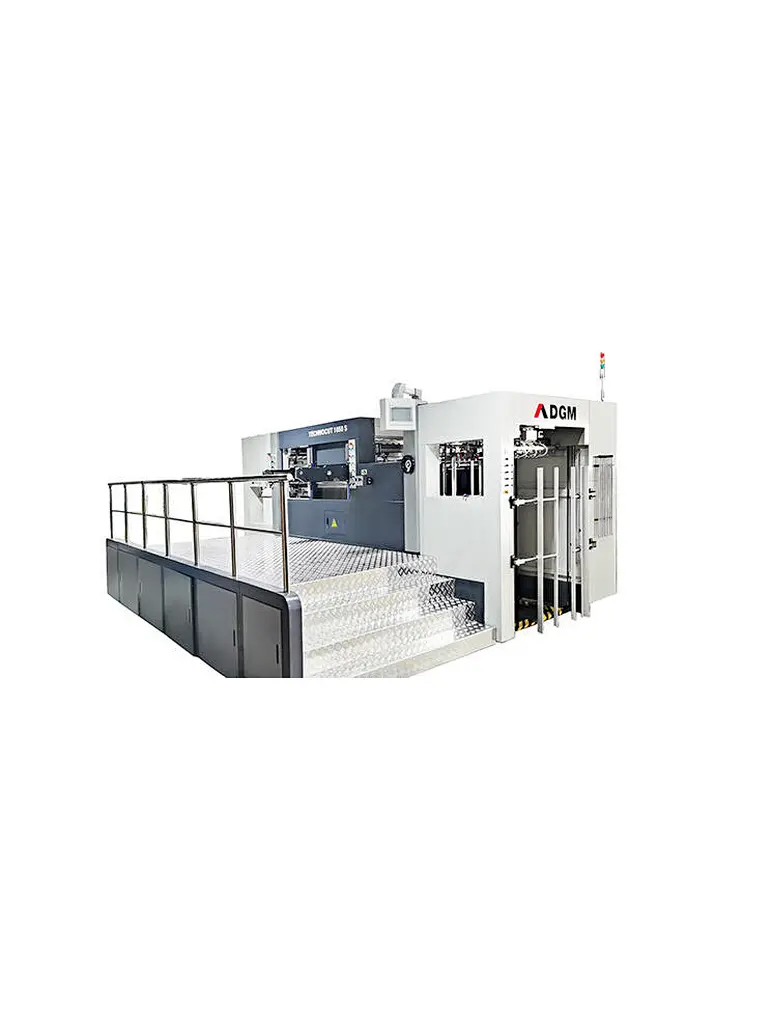

Composition

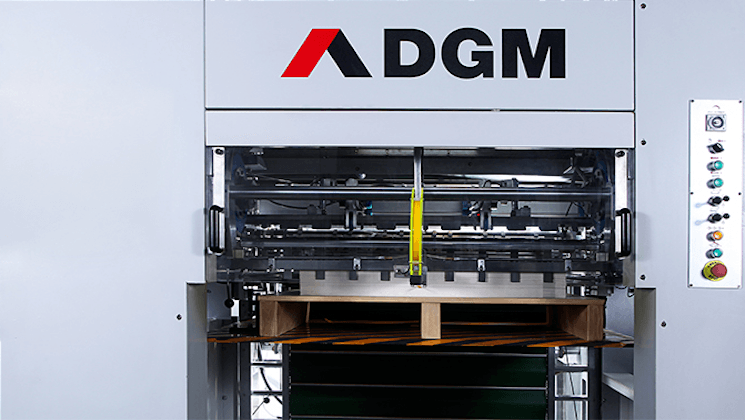

Feeder
Fully automatic non-stop paper feeding system.
Pallet & cart direct load.

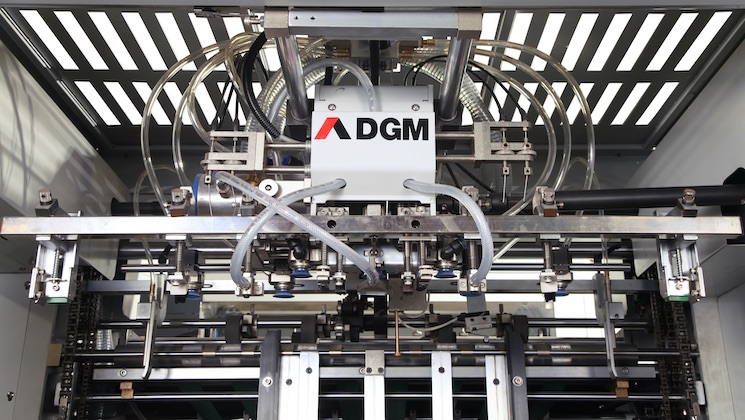

Powerful 4 lift-up and 4 delivery suckers, designed to handle a wide range of materials from paper to corrugated board. They guarantee the accuracy, reliability and smoothness of paper feeding.
Double sheet detector.
Register table

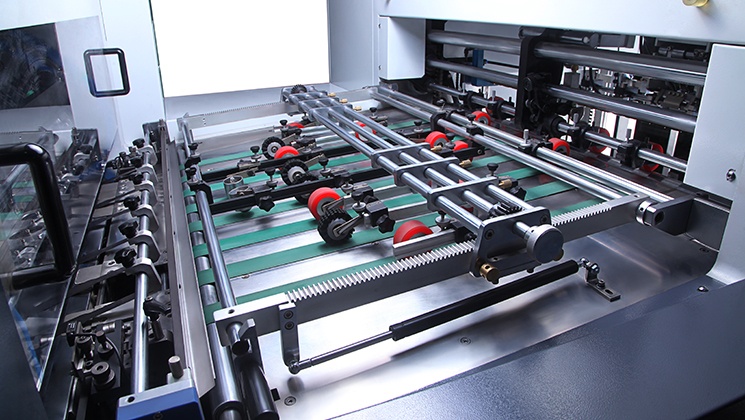

Registration table with 8 belts.
2 register side lays working with pulling and pushing system.

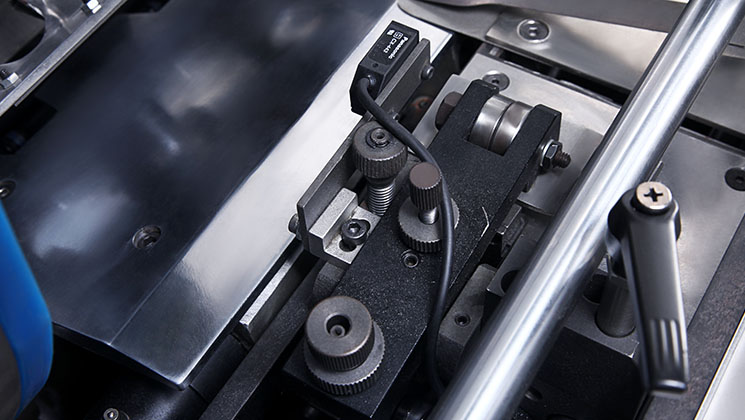

4 register front lays, independently adjustable.
Press Section

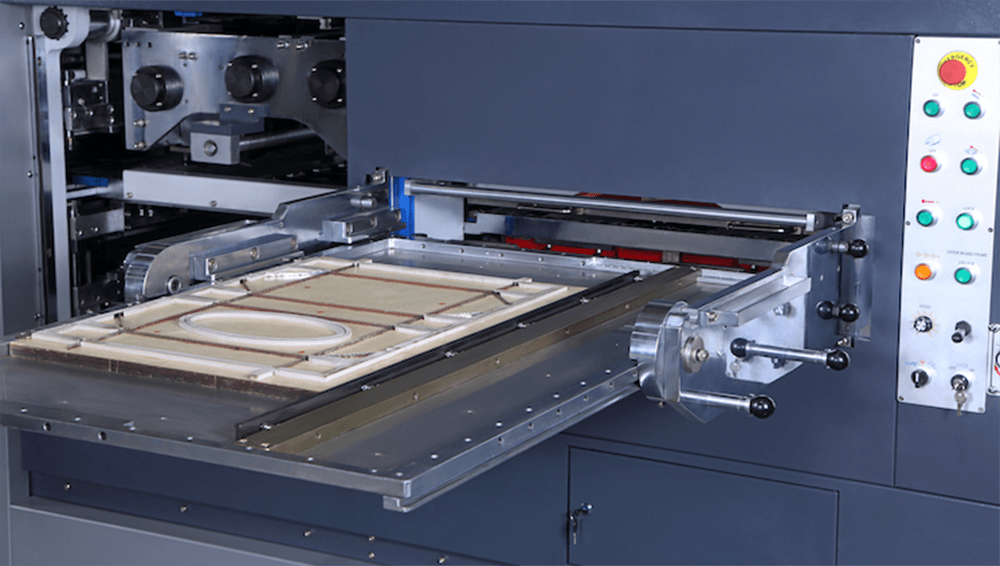

Closed chase with central positioning system device for fast positioning of the die.
5 mm thickness cutting plate.
Pressure control system, can be easily adjusted through touch screen. Equipped with overpressure protection system.
Automatic and manual lubrication system.

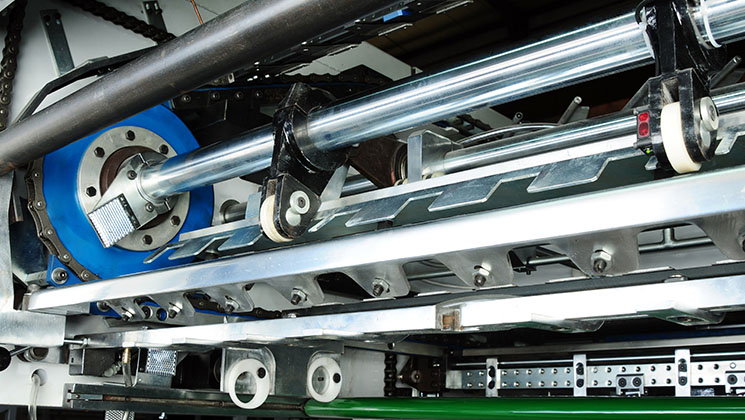

5 sets of light weight gripper bars.
Turn-over bracket for cutting chase and honeycomb chase.
Pneumatic lock & release system for cutting chase and honeycomb plate.
Delivery section
Non-stop system with automatic conveyor at delivery.
Processed material
Paper
Cardboard
Corrugated board
Specifications
Processed material
Paper min 80 g/m²
Cardboard max 2000 g/m²
Corrugated board max 4 mm
Capability
Sheet size min 350 x 400 mm
Sheet size max 740 x 1050 mm
Speed 7500 s/h
Cutting force 300 Ton
Converting
Cutting size max 730 x 1040 mm
Gripper margin min 9.5 mm
Pile height
Feeder 1650 mm
Delivery 1300 mm
Dimensions & Weight
L x W x H 6.17 x 4.2 x 2.45 m
Weight 16 Ton
Installation
Power supply 25 kW
Compressed Air 6 bar
Air flow 15 m³/h
Capacity 100 L

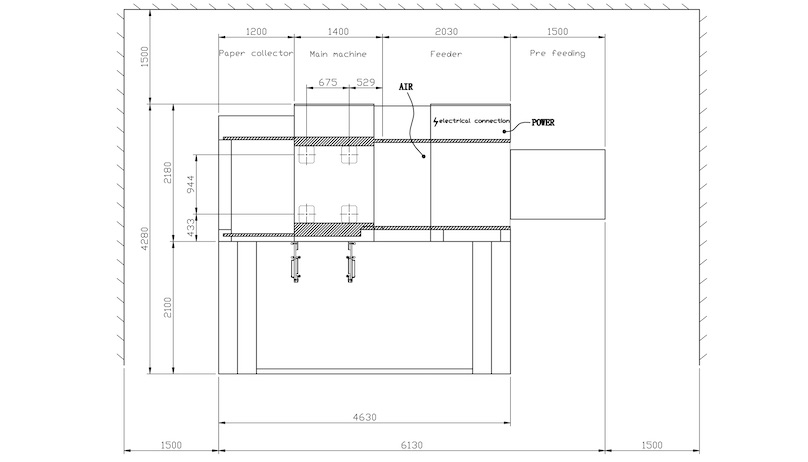

Scheme
