Folder gluer and window patching intelligent inline solution
Window patching machine

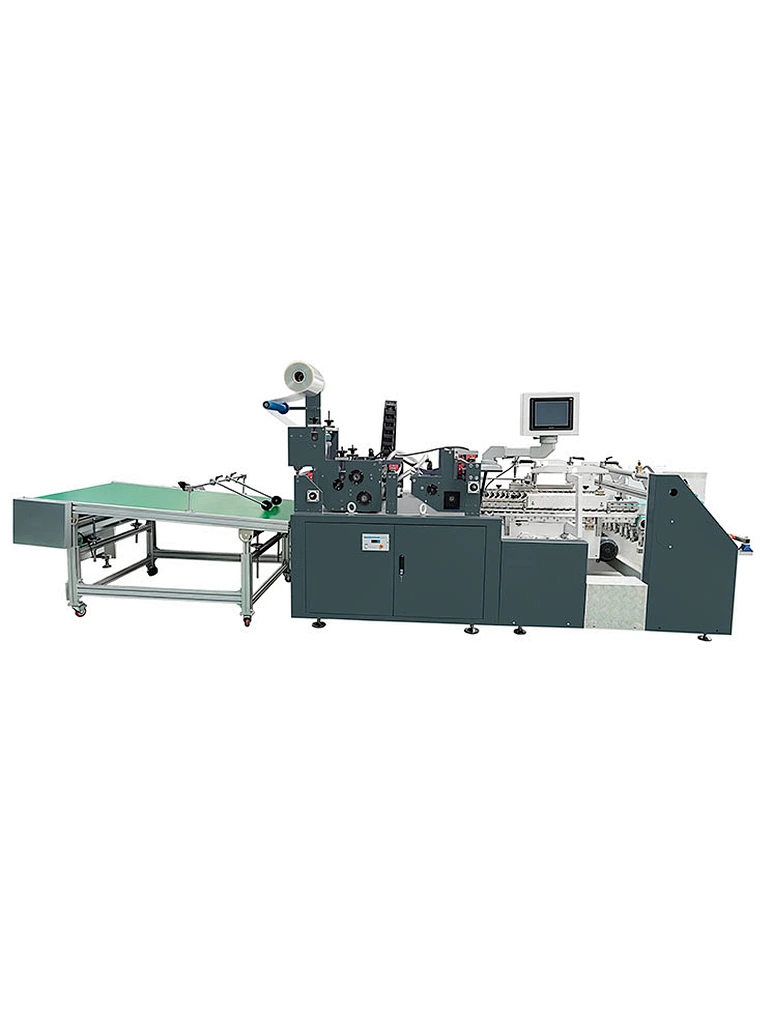

In-line window patching folding and gluing machine
The window pasting device adopts motion control tracking and automatic alignment correction system, suitable for many kinds of window patching boxes.
Features
Intelligent
Fully servo motor drive.
Using motion control, automatically align and correct.
Speed up to 10,000 s/h.
Flexible
Comprehensible touch screen interface, by inputing window film size, machine can automatically cut film, apply glue and window paste.
Window patching solution can be retrofitted to our folder gluers, but also to other folder gluers that exist in today´s market. It can also work off-line.
The window pasting device adopts motion control tracking and automatic alignment correction system, suitable for many kinds of window patching boxes.
Features
Intelligent
Fully servo motor drive.
Using motion control, automatically align and correct.
Speed up to 10,000 s/h.
Flexible
Comprehensible touch screen interface, by inputing window film size, machine can automatically cut film, apply glue and window paste.
Window patching solution can be retrofitted to our folder gluers, but also to other folder gluers that exist in today´s market. It can also work off-line.
Quantity
Composition
Alignment section
Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank alignment.
Independent servo motor driven.
Easy and fast operation.
Window pasting section
Gluing unit
2 servo-motor driven system, apply glue with high precision.
Depends on box sizes, can work as single lane or double lanes.
Film pasting unit
3 servo-motor driven system, paste film with high precision.
Large format conveyor with suction, ensures a stable and even box transferring.
Tension adjustment mechanism to achieve a precise film feeding.
Processed material
Paper
Carton Board
Corrugated board
Specifications
Film thickness 0.08-0.2 mm
Window width 80-400 mm
Window length 80-380 mm
Speed 130 m/min
Scheme
