Without pre-folding section.
Suitable for straight-line, crash-lock bottom & double wall boxes.
TECHNOFOLD 1450 – PC
Suitable for straight-line, crash-lock bottom & double wall boxes.
TECHNOFOLD 1450 – SL
Suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes.

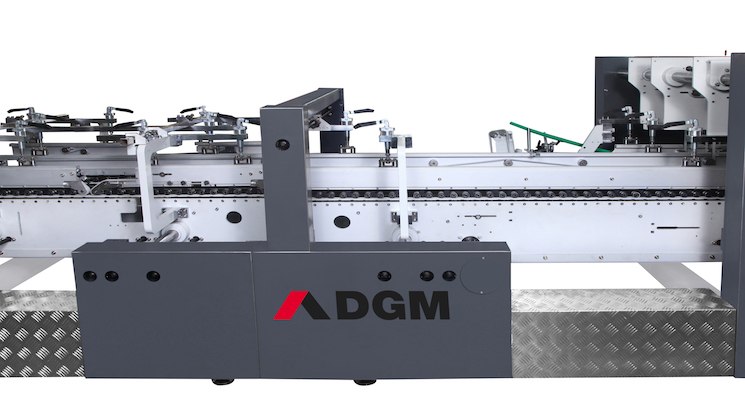

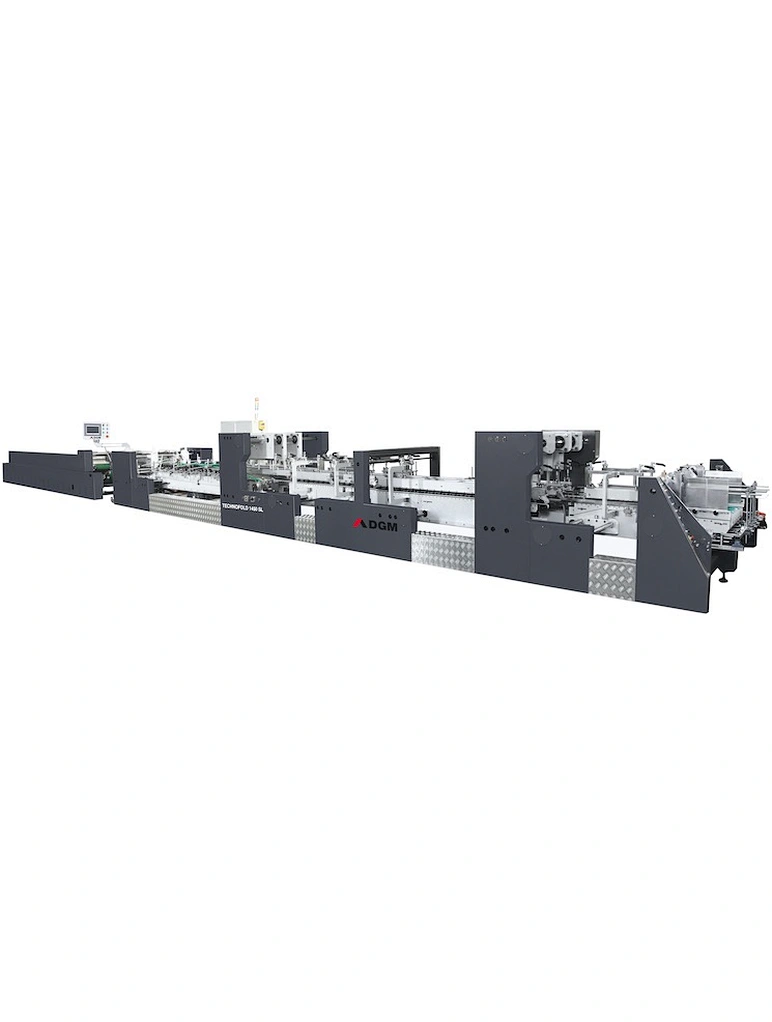

TECHNOFOLD-1450 Ideal for working with medium and large boxes in the heavy packaging industry. Its design includes driven upper carriers, making easy the precise folding and closing micro-flute and corrugated boxes in its advance.
The new Technofold series inherits the best features of the previous Technofold ES series, making a qualitative leap by developing new solutions. Versatility, fast exchange of accessories, easy setup together with faster production speed, guarantee a high productivity and quality of work. Technofold, the perfect folder-gluer machine for the most demanding packaging market.
Composition

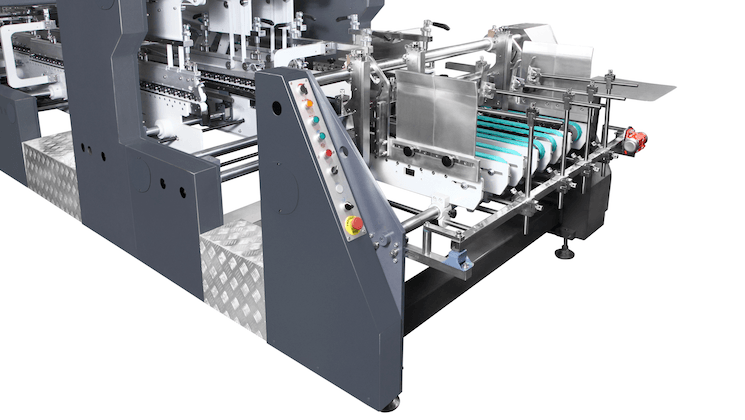

Feeder section
Driven independently by servo motor.
Adjustable electronic pile vibrator.
Lateral feed gates fully adjustable to the width of the blank.
10 feeder belts.
Three adjustable front feed knives.
Side register section
Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank alignment.
Pre-folding section
Left hand glue flap pre-folder up to 180º.
Third crease line pre-folder up to 135º.
1st and 3rd crease openers.

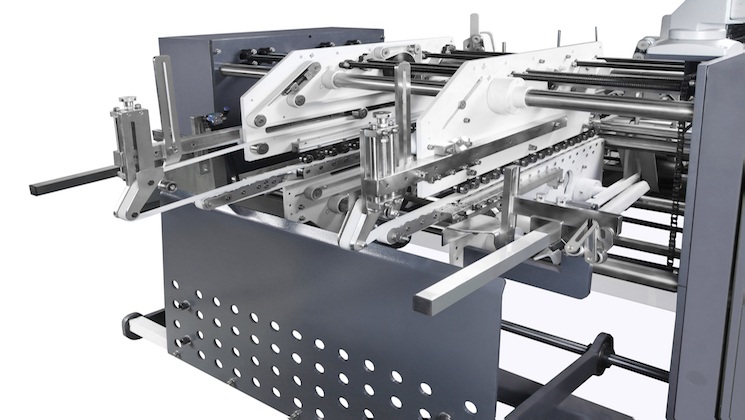

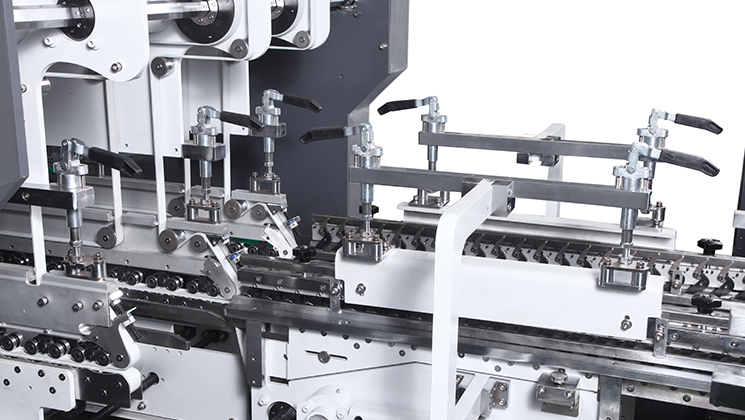

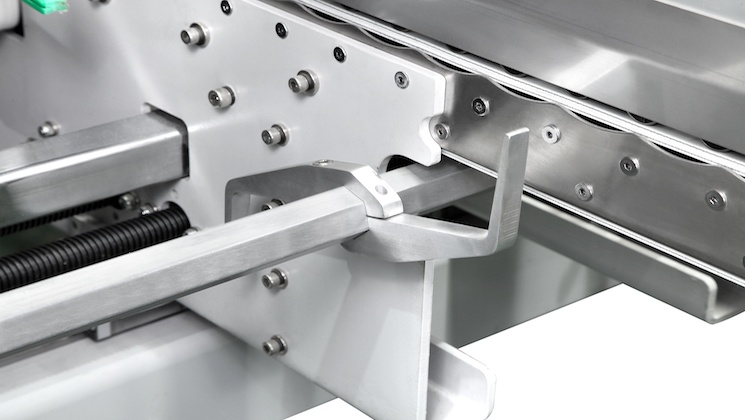

Crash lock bottom section
3 sets of upper and lower carriers.
Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately.
Set of accesories for “B” lock bottom.
Lower gluing unit
Left lower gluing tank.
Easy to remove and clean.
Optional electronic upper gluing system by guns, upon request.

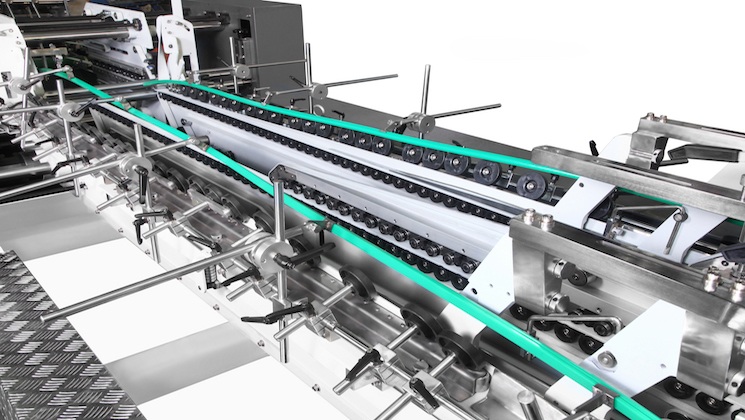

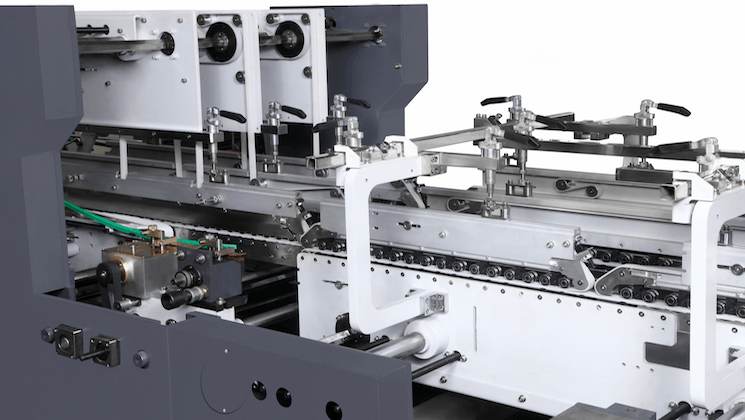

Folding and Closing section
Smooth and accurate folding of 2nd and 4th creases.
Outer folding belts adjustable up to 180º with variable speed.
Three upper and lower carriers.
25 mm lower and 30 mm outer belts on left and right carriers.
Width-wise adjustable heavy duty compression rollers.
Trombone section
Upper and lower drive mechanism for length adjustment.
Equipped with automatic belt tension-adjusting system.
Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well aligned flow.
Electronic counter and ¨Kicker¨ for marking packets.

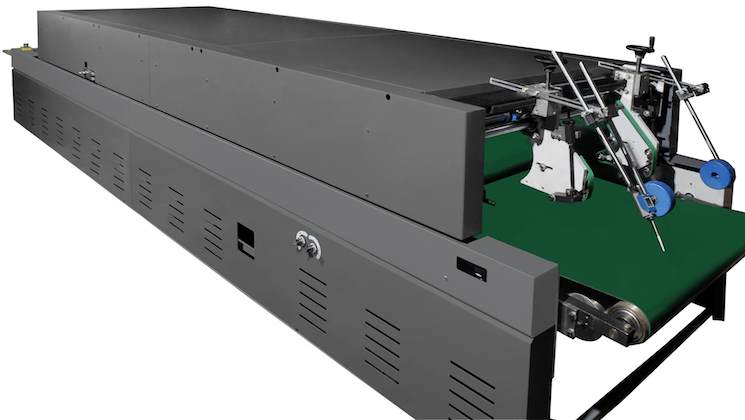

Press section (Delivery section)
Independent & motorized press section.
Manual and Automatic mode (follow up).
Upper section moves back and forward, allowing for different box length.
7.4 meters total length with 4.0 meters effective pressure length.
Pneumatic pressure adjustment.
Back folding device
Suitable to fold rear 4 & 6-corner flaps or panels and many other designs.
Motorized and untimed electronic back folding system with intelligent servo motor technology.
Easy to setup through the main touch screen.
Processed material
Paper
Carton Board
Corrugated Board
Specifications
Processed Materials
Carton max. 800 g/m²
Corrugated flute type N, E, F & B
Capability
Speed max. 300 m/min
Inching speed 20 m/min
Thickness of folded box max. 15 mm
Blank width max. 1450 mm
Dimensions & Weight

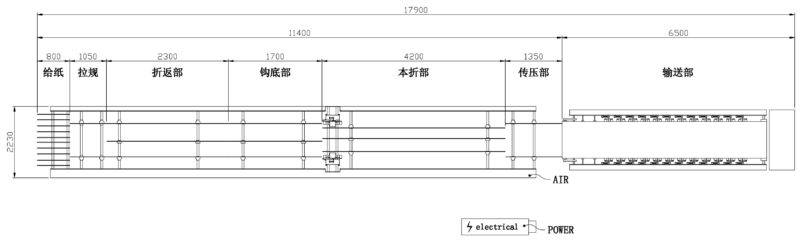

Length AC: 15.6 m PC: 17.9 m SL: 17.9 m
Width AC: 2.23 m PC: 2.23 m SL: 2.23 m
Height AC: 1.5 m PC: 1.5 m SL: 1.5 m
Weight AC: 9 Ton PC: 10 Ton SL: 10.2 Ton
Installation
Electrical connected load AC: 16 kW PC: 20 kW SL: 26 kW
Compressed air 6 bar
Air compressor capacity 10 m³/h
Tank capacity 60 L
Scheme
Box type
Straight - line Box
A: 220 - 1450 mm
B: 150 - 900 mm
E: 100 - 710 mm
Lock - bottom Box
A: 220 - 1450 mm
B: 150 - 900 mm
E: 100 - 710 mm
Double - wall Box
A: 320 - 1450 mm
B: 100 - 800 mm
D: 30 - 150 mm
E: 100 - 1300 mm
4 - corner Box
A: 280 - 1450 mm
B: 180 - 800 mm
H: 25 - 150 mm
4 - corner Box with Lid
A: 430 - 1300 mm
B: 180 - 800 mm
H: 25 - 150 mm
6 - corner Box
A: 430 - 1450 mm
B: 180 - 800 mm
H: 25 - 150 mm
