Composition

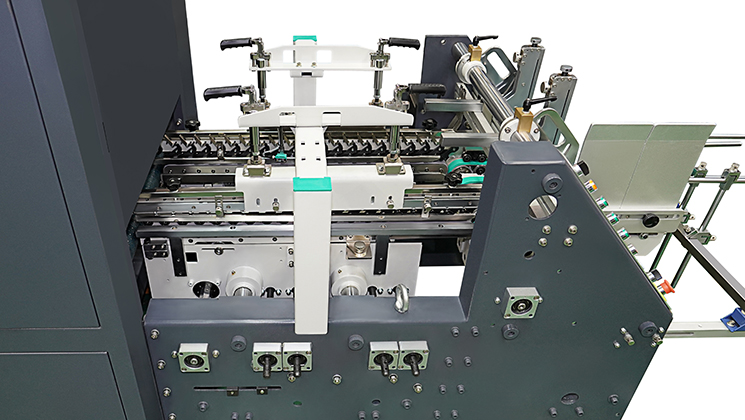

Feeder

• Independent and motorized friction feeder with variable speed.

• Adjustable electronic pile vibrator.

• Lateral feed gates fully adjustable to the width of the blank.

• 6 feeder belts.

• 2 sets of adjustable feed knives.

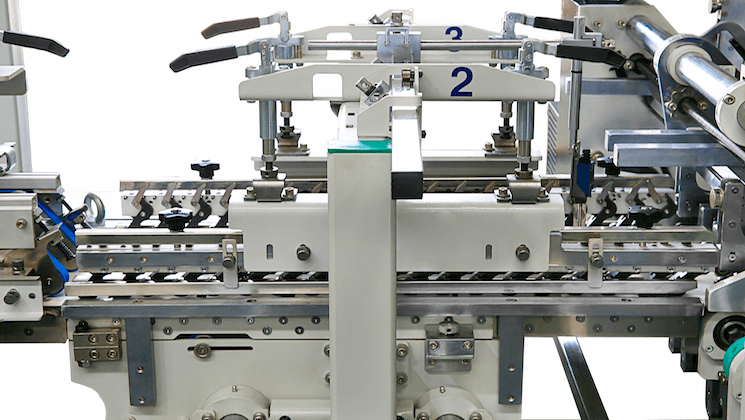

Side Register section

• Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank alignment.

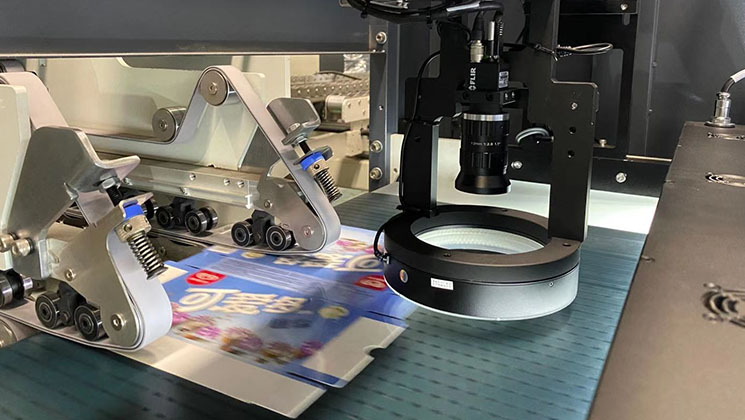

Online inspection module

• High-speed image processing computer workstation.

• Single sheet inspection software Printing Plus V5.0 English version.

• The high-speed visual image unit, equipped with Japan´s imported lens, Canada imported high/frequency COMS line scan industrial camera.

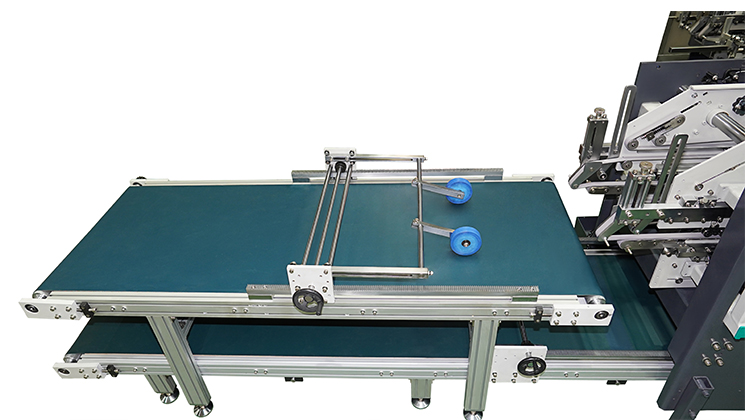

Defect box collecting department

• The upper and lower belts are driven by a synchronous transmission system, to avoid scratches during transportation.

• Pneumatic ejecting device to minimize scratches on boxes.

• Dual-lane collecting system upon request.

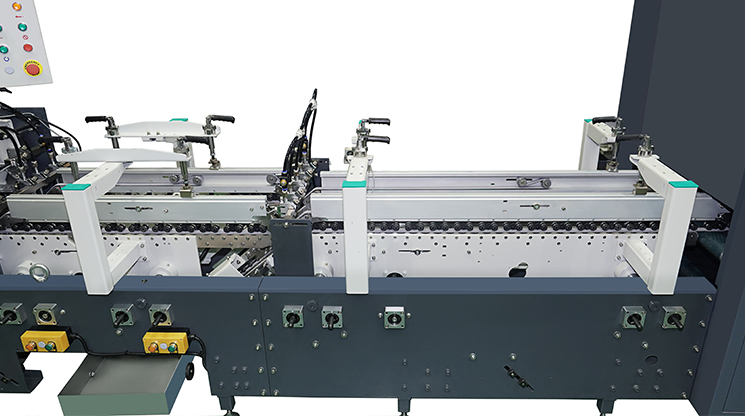

Delivery section

• Automatic and manual speed variation in coordination with a photocell.

Processed material

Cardboard

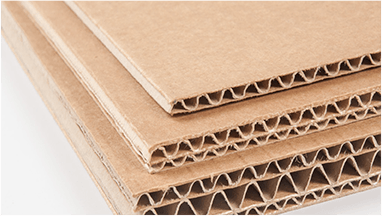

Corrugated board

Specifications

• Technical parameter

• Carton size max. 500 × 400 mm

• Carton size min. 90 × 90 mm

• Machine size L x W x H 8.8 × 1.5 × 1.3 m

• Power supply 17 kW

• Air consumption 6 Pa

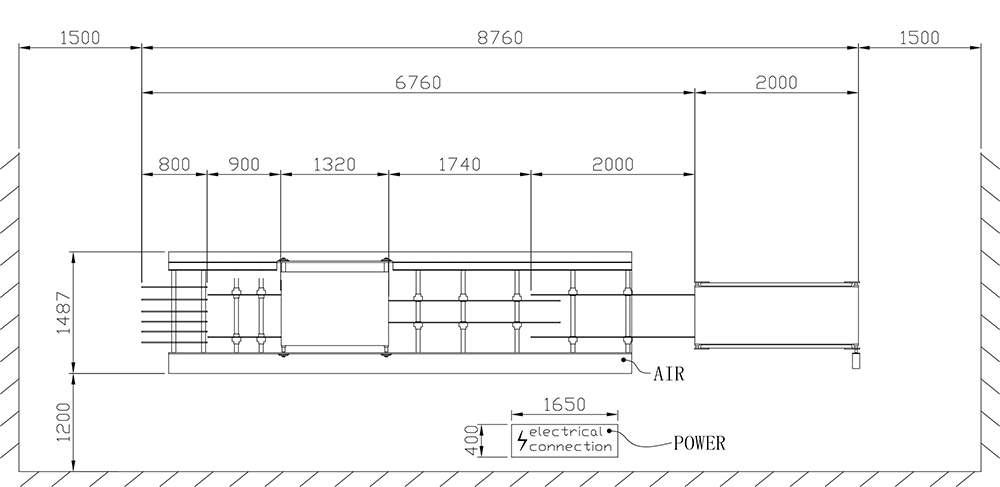

Scheme

Box type

Straight - line Box

A: 126 - 650 mm

B: 100 - 500 mm

E: 58 - 320 mm

Lock - bottom Box

A: 146 - 650 mm

B: 110 - 500 mm

E: 68 - 320 mm

Double - wall Box

A: 200 - 650 mm
B: 100 - 500 mm
D: 30 - 150 mm
E: 80 - 530 mm
