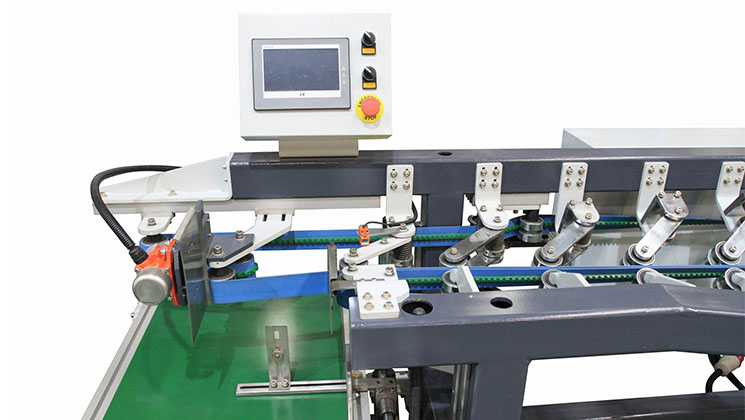

Semi-automatic box collecting machine
G-PACK
G-Pack semi-automatic box collecting machine, driven by independent motor, can be matched with all kinds of folder gluer of any brand that exist in today´s market. Different types of boxes can be counted in batches, such as straight-line boxes, 4&6 corner boxes, double-side wall boxes, etc., which significantly improves the productivity of folder gluer. G-Pack requires only one person, easy to operate.
A. Transmission
1) Adopts motor direct transmission structure.
2) Adopt segmented induction control operation design.
3) Balanced transmission and lower noise;
B. Overall structure
1) The overall structure is newly optimized design;
2) Transferring belts turn boxes 90-degree turning, each guide wheel on the upper belt can be adjusted individually.
A. Transmission
1) Adopts motor direct transmission structure.
2) Adopt segmented induction control operation design.
3) Balanced transmission and lower noise;
B. Overall structure
1) The overall structure is newly optimized design;
2) Transferring belts turn boxes 90-degree turning, each guide wheel on the upper belt can be adjusted individually.
Quantity
Composition

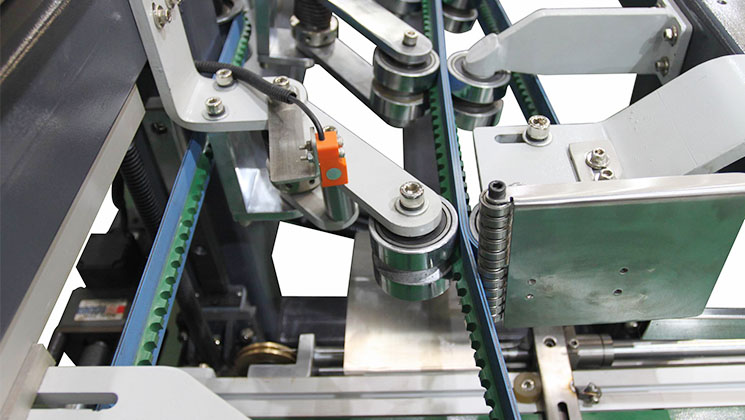

90˚ turning section
Two 60mm width transferring belts.
The upper and lower belts are guided by the embossing guide wheel to turn the boxes through 90°
Upper belt guiding pulleys is presure adjustable according to each job.
Horizontal collection section
Two alignment plates with vibration to regulate the box flow.
Easy to operate.
Processed material
Cardboard
Corrugated board
Specifications
Processed material
Cardboard, corrugated board E, N & F
Capability
Folded box width 75 - 430 mm
Folded box length 50 - 500 mm
Speed max. 14 m/min
Dimensions & Weight
Length 3.25 m
Width 1.9 m
Height 1.1 m
Weight 700 kg
Total power 1 kW, 380 V, 3 PH

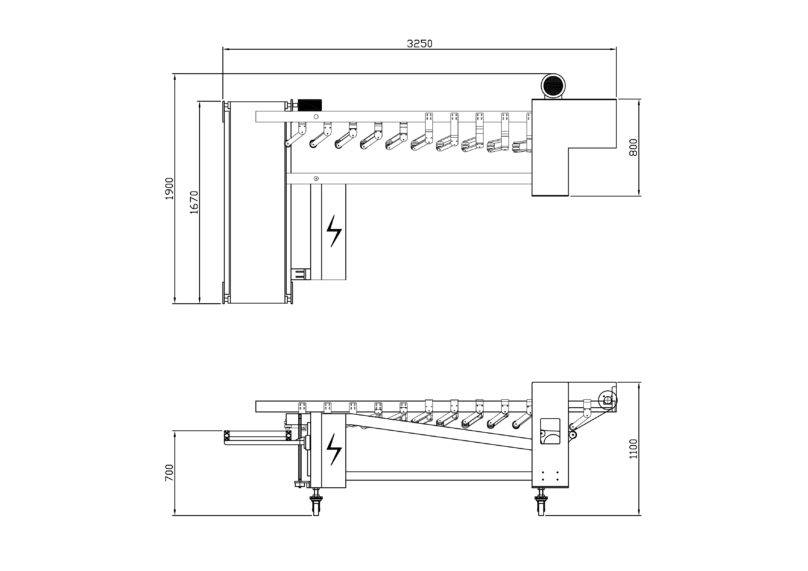

Scheme
Box type
Finished box
A: 75-430mm
B: 70-500mm
